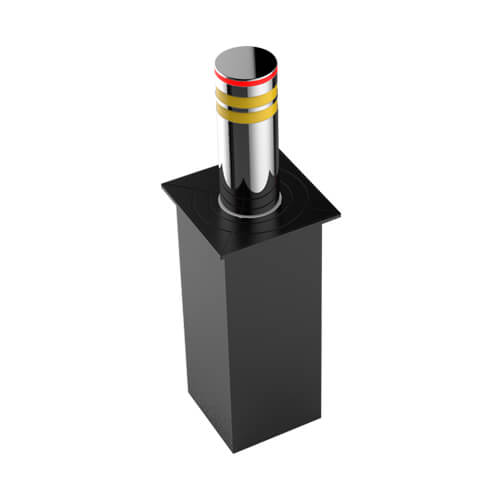

BOL1219-A
BOL1219-A is a high-quality automatic bollard which is used widely to protect security areas from vehicle intrusion. It is an ideal solution for entrance with high security requirements. Raising time of BOL1219-A is 3 seconds. Even if the intrusion is from high tonnage vehicle in high speed, the bollard will stop the vehicle easily because it is so solid that the vehicle will break after impact instead. There are also some extra safety precautions in the design of BOL121 9-A. The LED bar on the bollard can effectively avoid accidents caused by poor vision of drivers at night. In case of power failure, the bollard can be lowered manually. Equipped with PLC (Programmable Logic Controller), various control methods can be achieved easily, such as biometric readers, remote control and push button station. The bollard is commonly found in customs, ports, prisons and military bases where traffic guidance is needed to protect people and property. This product provides ideal access control in areas mentioned above and raises the level of security.


Product Features
Raise/lower smoothly and quietly with hydraulic drive unit
Equipped with LED
Solid structure ensures high weight load
Extra terminal to support varieties of control methods
In case of power failure, the bollard can be lowered manually
Technical Specifications
Drive unit
Hydraulic
Diameter
219mm
Weight
>_130KG
Raising height
600mm / 800mm
Underground product dimensions
430mm*430mm*1130mm / 430mm*430mm*1330mm
Raising / lowering time
3s
Weight load
120t
Material
SUS304
Material thickness
6/8/10/12/15/30mm
Ingress Protection
IP68
Working voltage
AC110/220V
Working power
350W
Working temperature
-35°C -75°C
