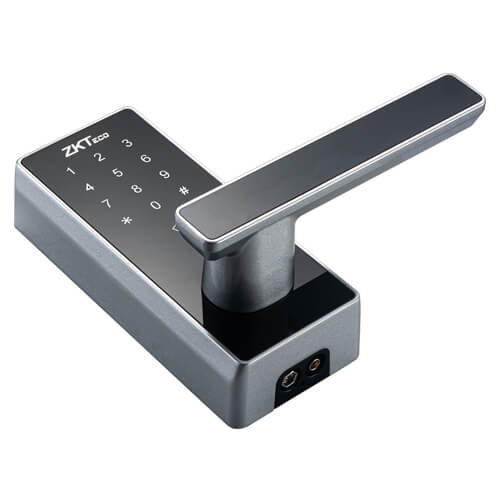

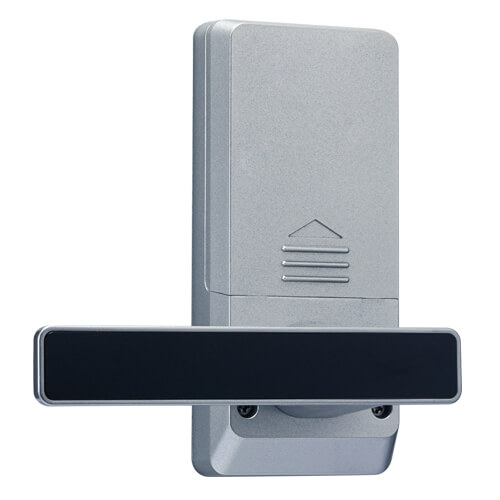

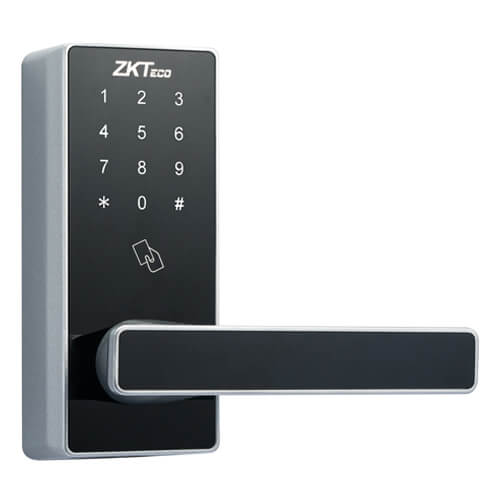

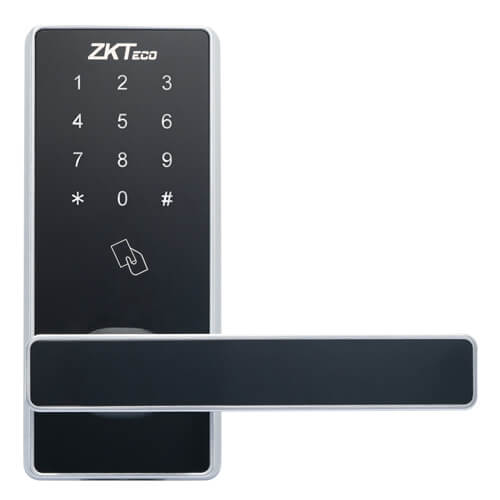

DL30Z
DL30Z is a digital keypad smart lock with Zigbee communication. With the additional Zigbee Gateway, you can easily remotely unlock the door lock, check the log history, share the temporary or dynamic passcode, modify the lock’s features via ZSmart App, which is a new mobile application for the smart home system.With its powerful and smart core, you can receive the real-time notifications of low battery, illegal verification attempts, hijack alarm of family members, offline status, and so on. Besides, you can customize conditions to trigger some messages or actions like when a family member goes home. DL30Z is suitable for private houses, apartments and short-term rental, and greatly brings more security and convenience to your life.
Product Features
Total Control
Unlock and manage the lock from anywhere via a smart phone
Audio Instructions
Easy to operate; support English, Spanish and Portuguese
Random Passcode
Secure your passcode from prying eyes
Temporary Access
Share digital keys valid for specific time to friends or guests
Smart Alerts
Receive real-time notifications of low battery, hijack and offline
Reversible Design
Fit for all door opening directions
Technical Specifications
Material
Zinc Alloy (Front) + ABS (Back)
Mortise
American Standard Single Latch German Standard Mortise (optional)
Identification Mode
Smart Phone, Passcode and Card
User Capacity
100
Passcode Capacity
100
Card Capacity
100
Card Reader
Mifare Card & NFC Supported
Audio Prompt
English, Spanish, Portuguese
Communication
Zigbee
Remote Access
Zigbee Gateway required
Power Supply
4×AA Alkaline Battery (not supplied)
Backup Power Interface
9V Battery Supported
Battery Life
Up to 1.5 years (about 10,000 access)
Door Thickness
30-54 mm (standard)
Backset
Adjustable 60 or 70 mm (only for single latch)
Dimensions (W*L*D)
Front – 69*155*35 (mm)
Back – 69*155*26 (mm)
Operating Temperature
-20°C to 55°C
Operating Humidity
10%~90% RH (non-condensing)
Certifications
CE-RED, FCC ID
