MB560-VL is a multi-biometric identification terminal featuring ZKTeco’s innovative Visible Light Facial Recognition technology. With the latest algorithm and facial recognition related technologies, the device can perform recognition of a target in a distance from 0.3m to 2m and will function automatically when it detects a face in the detection distance so as to deliver better recognition quality in terms of speed and accuracy than the previous near-infrared facial recognition terminal. With the applied Deep Learning algorithm, pose angle tolerance and anti-spoofing have been greatly enhanced against dynamic environment and various spoofing attacks. Apart from all these, together with the world's cutting-edge 3D Neuron Fingerprint Algorithm and comprehensive support in mainstream card modules and additional support in WiFi, MB560-VL must be a best fit in various working environments satisfying different customer’s needs.

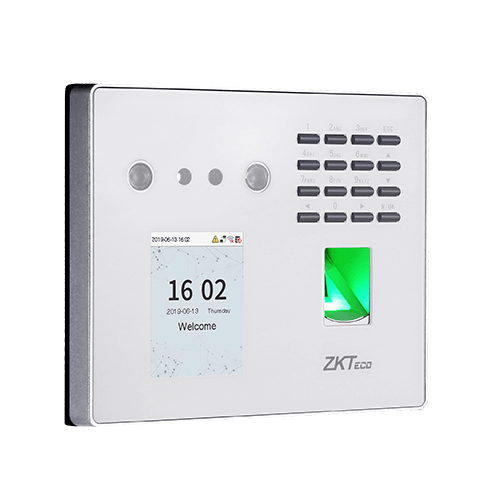

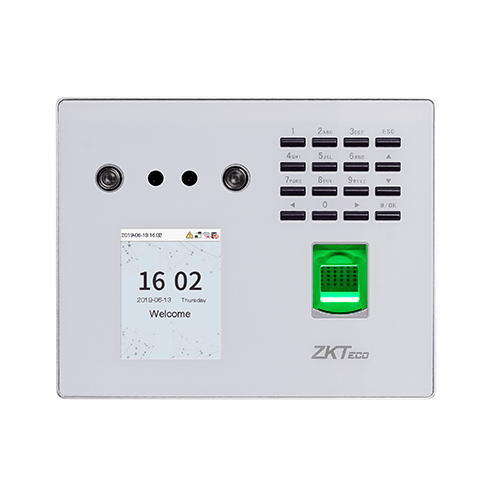

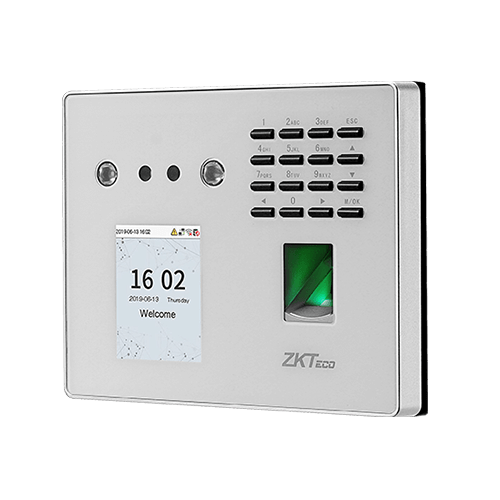

Product Image
Product image
Product image
Product image

Product Features

Visible Light Facial Recognition

Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack

Multiple verification methods

Face / Fingerprint / Card / Password

Optional card modules

125KHz ID Card (EM) / 13.56MHz IC Card (MF)

Supplement lighting with adjustable brightness

Technical Specifications


2.8-inch TFT Screen

Face Capacity


Fingerprint Capacity


Card Capacity

10,000 (Optional)




TCP/IP, WiFi (Optional), USB Host

Standard Functions

ADMS, Work Code, DST, Self-service Query, Automatic Status Switch, T9 Input, Camera, 9-digit User ID, Multiple Verify Modes, Schedule Bell


900MHz Dual Core CPU; Memory 512MB RAM / 8G ROM; 2MP WDR Low Light Camera; Adjustable LED Supplement Lighting

Operation System


Access Control Interface

3rd Party Electric Lock, Door Sensor, Exit Button

Optional Functions

125KHz ID Card (EM) / 13.56MHz IC Card (MF)

Biometrics Algorithms

ZKFace V5.8 & ZKFinger V10.0

Facial Recognition Speed


Power Supply

12V 1.5A

Working Humidity

20% - 80%

Working Temperature

0 °C - 45 °C

Dimensions (W*H*D)

170 * 138 * 38.55 (mm)

Supported Software
