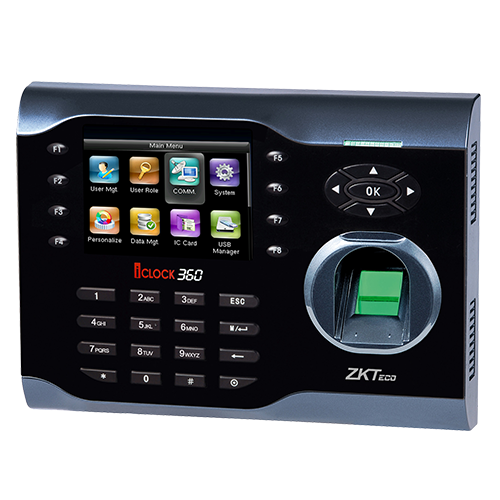

iClock360
The firmware of iClock360 has been updated to the New version with whole new experiences including stunning GUI, rock-solid stability, fast matching and expandability. Users can easily manage data by networking iClock360 via RS232, TCP/IP, and USB host/client (optional). Most importantly, all the functions can still operate in a networking state. iClock360 is compatible with various types of USB flash disks, ADMS and former SDK. It also supports data backup and retrieve to avoid the risk of accidental deletion. It promotes the fingerprint time & attendance management to the next level. You can get the best of benefits from the iClock360.
Product Features
Remarkable User Experience
Intuitive and stunning UI designed with the most popular and internationalized factor
Interface operation adopts modularized hierarchical design. Simpler, better and more logical
Faster matching speed: less than 1 second.
Enhanced Features and Performance
User validity settings
Data backup and retrieve
Advanced User ID consisting of letters and numbers
Chip encryption for firmware protection
More flexible menu configuration: double line text display
Excellent Expandability
Easy to extend functions and customize customers demand
Technical Specifications
Fingerprint Capacity
8000
Card Capacity
10,000 (Optional)
Record Capacity
200,000
Display
3.5-inch Screen
Communication
TCP/IP, RS232, USB Host,USB Client(optional)
Standard Functions
Workcode, SMS, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 input, 9 digit user ID, and photo-ID
Optional Functions
ID/Mifare/HID, Webserver, and Wi-Fi, ADMS, External Bell and Printer
Software
ZKTime.Net 3.0 / BioTime 8.0
Power Supply
DC 12V 1.5A
Verification Speed
<_1 sec
Operating Temp.
0°C- 45°C
Operating Humidity
20%-80%
Dimension
192×140×41mm (Length×Width×Thickness)
Gross Weight
1.05 kg
