iClock700 is a 3.5-inch TFT screen Time & Attendance and Access Control Terminal. With the new user-friendly firmware, iClock700 is equipped with features like stunning GUI, more stability, faster matching speed and better expandability. iClock700 is compatible with various types of USB flash disks, ADMS and former SDK. Moreover, RS232/485, TCP/IP, and USB client ensures a smooth date transmission between device and PC. It also has Wi-Fi and 3G connectivity and access control connectivity with Wiegand out and in, electric lock, door sensor, exit button, alarm and door bell.

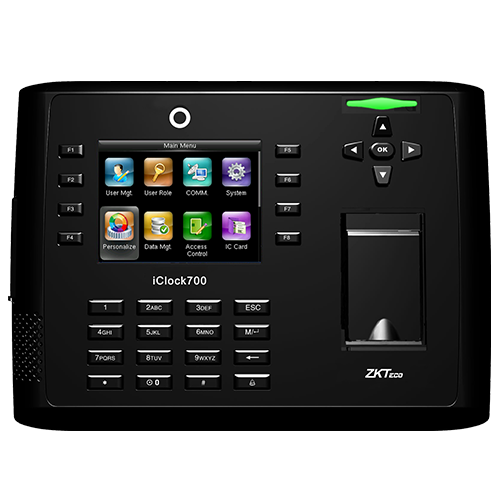

Product Image
Product image

Product Features

Remarkable User Experience

Intuitive and stunning UI designed with the most popular and internationalized element

Interface operation adopts modularized hierarchical design. Simpler, Better and More logical

Faster matching speed: Less than 1 second

Enhanced Features and Performance


Data backup and retrieval

Advanced User ID consisting of letters and numbers

Chip encryption for firmware protection

Excellent Expandability

Easy to extend functions and customize customers’ requirements

Access Control Interface

For Wiegand in and out, door lock connection, alarm and bell

Technical Specifications

Fingerprint Capacity


Card Capacity

10,000 (Optional)

Record Capacity



3.5-inch TFT Screen


RS232/485, TCP/IP, USB-host/client

Standard Functions

Work code, SMS, DST, Webserver, Scheduled-bell, Self-Service Query, Automatic Status Switch, Photo ID, T9 Input, Anti-passback, Camera, Built-in Battery

Access Control Interface

3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Door Bell

Wiegand Signal

Input & Output

Optional Functions

ID/IC Card/HID, External Printer, ADMS, Wi-Fi, 3G, Multi Verification Mode


ZKTime.Net 3.0/BioTime 8.0

Power Supply

DC 12V 3A

Verification Speed

<_1 Sec

Operating Temp.

0°C - 45°C

Operating Humidity

20% - 80%


225.2×166.0×46.3mm (Length×Width×Thickness)

Gross Weight

1.94 kg
