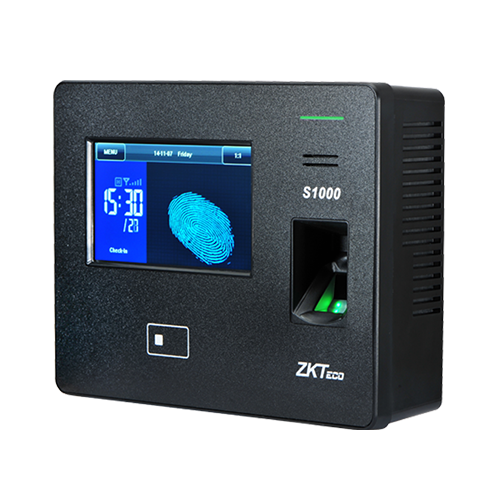

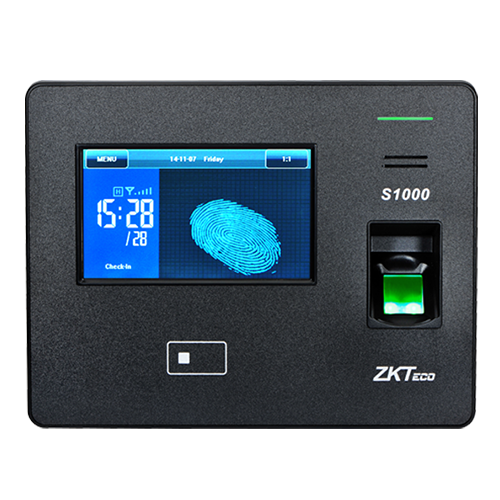

S1000
The S1000 is a 4.3-inch touch screen Time Attendance Terminal with elegant design and professional surface treatment. This device is able to support Wi-Fi, 3G, and features 20000 fingerprints capacity, especially applicable for some projects’ time attendance.
Product Features
4.3’’ touch screen is user-friendly and very intuitive
Multi-languages
20,000 Fingerprints and 20,000 cards
Built-in 2000mAh backup battery extends operation time (optional)
Communication
TCP/IP, USB-host, Optional: Wi-Fi, 3G (WCDMA)
Optional ID, Mifare, HID cards
Technical Specifications
Fingerprint Capacity
20,000
Card Capacity
20,000 (Optional)
Record Capacity
200,000
User Capacity
20,000
Display
4 .3-inch Touch Screen
Communication
TCP/IP, USB-host, Optional with WiFi/3G
Standard Functions
Work Code, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 Input
Optional Functions
ID/Mifare/HID, Wi-Fi, 3G (WCDMA), ADMS, Backup Battery
Software
ZKTime.Net 3.0, BioTime 8.0
Power Supply
DC12V 3A
Verification Speed
<_0.5 Sec.
Operating Temp.
0°C - 45°C
Operating Humidity
20% - 80%
Dimension
190.0×147.0×53.8 mm (Length×Width×Thickness)
