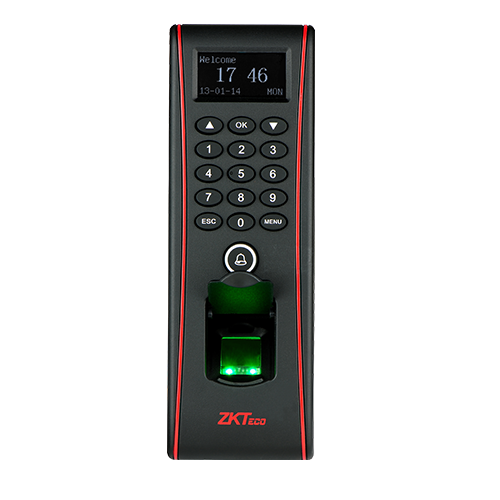

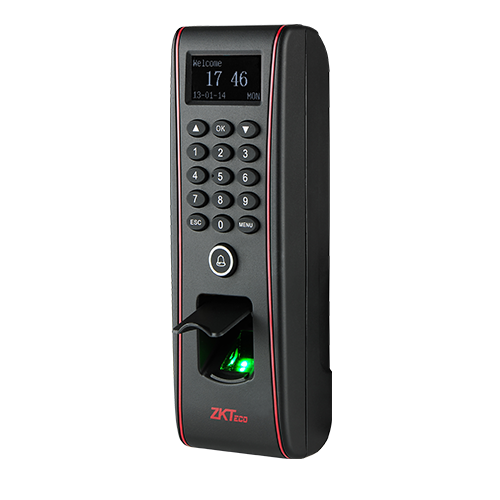

TF1700

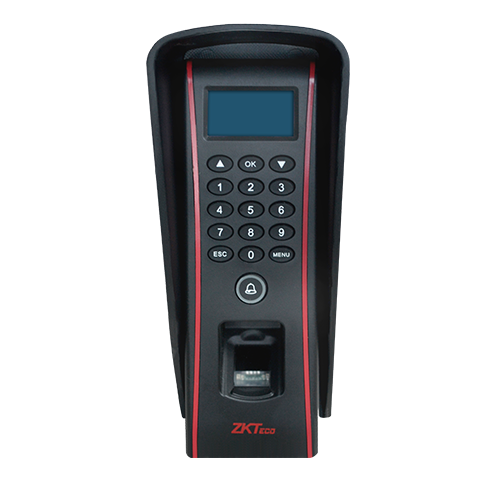

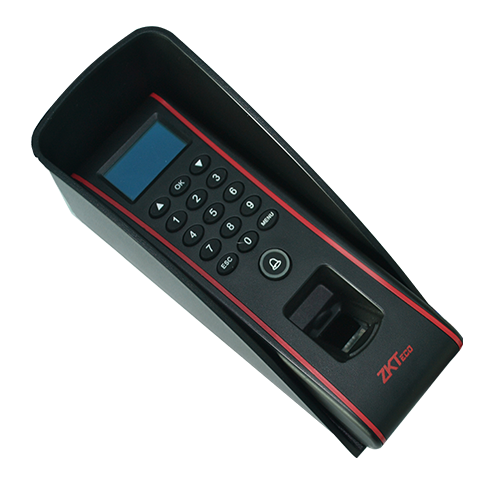

TF1700 is one of the world’s smallest Ethernet connection-based fingerprint terminals, used for access control and time attendance features, with IP65 waterproof housing. With its IP65 rated rugged waterproof and dustproof structure, TF1700 offers extra durability in harsh conditions such as outdoor environments. It is specially designed for standalone applications such as house, office, shop, garage, factory and others. The 2013 version of TF1700 is equipped with a sensor cover to protect the optical reader and updated with new firmware that supports ZKAccess3.5 management software which has versatile features and powerful functions.
Product Features

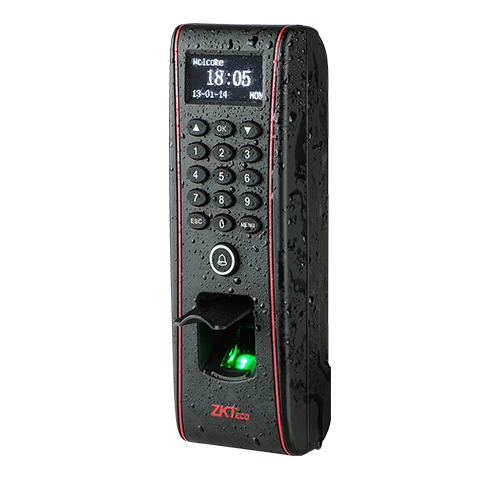

Rugged Structure for Outdoor Installation and Extra Durability
IP65 rated waterproof and dustproof structure
Slim and Elegant Design
One of the world’s smallest fingerprint terminals
Sleek and slim design for narrow spaces
Fast and Accurate Fingerprint Algorithm
1 touch a-second user recognition
Store 3,000 fingerprint templates, 30,000 cards and 100,000 transactions
Easy Installation and Connectivity
Wiegand input & output
Network interface by TCP/IP or RS485
Full Access Control Features
Anti-passback
Access control interface for 3rd party electric lock, door sensor, exit button, alarm and doorbell
Easy Operation and Management
Work without computer
OLED, buzzer, 3×5 keypads
Built-in keypad and RF card reader for multi-modal authentication (Fingerprint/PIN/Card)
Technical Specifications
Fingerprint Sensor
Infrared detection fingerprint sensor
Algorithm Version
ZK Finger 10.0
Communication
TCP/IP, RS485, USB Host
Fingerprint Capacity
3,000 Fingerprints(8,000 Optional)
Card Capacity
10,000 Cards
Log Capacity
50,000 Transactions
RF Card
EM(standard)/IC Card(optional)
Authentication
Finger/PIN/Card
Wiegand Signal
Wiegand input&output
Ingress Protection Rate
IP65
Display
128 x 64 OLED
Sound and Interface
Buzzer and multi-color LED
Operating Voltage
12VDC 3A
Operating Temperature
-10 °C~50 °C (14°F ~ 122°F)
Dimension
62.5mm×185mm×41.5mm (W×H×D)
